9v to 5v DC PSU

by iainhendry

Description

This is a basic 9v to 5v PSU using a 7805 regulator, this was a common circuit to build for building a low cost 5v stabilised DC supply using a 9v PP3 battery as an input source

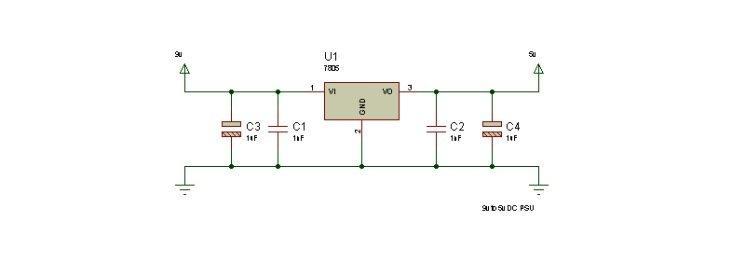

Schematic

9v to 5v DC PSU

9v to 5v DC PSU

Parts List

QTY  PART-REFS           VALUE               CODE
---  ---------           -----               ----
Capacitors
----------
2    C1,C2               1nF
2    C3,C4               1uF

Integrated Circuits
-------------------
1    U1                  7805
