Adjustable 7805 DC output

by iainhendry

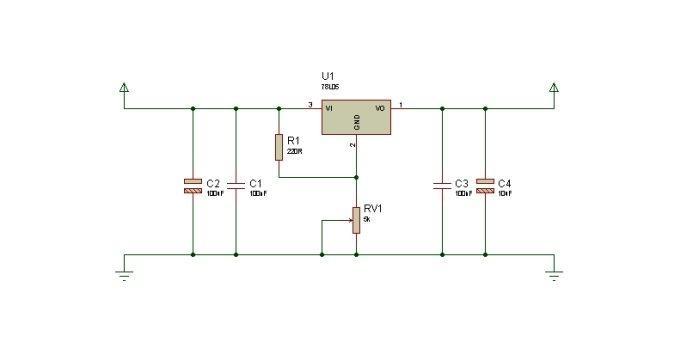

You can, with a little modification use a 7805 regulator to generate a variable voltage output, in the example below the output can be 5v to 30v.

At higher output voltages you should fit a suitable heatsink to the 7805.


7805 adjusatbale

7805 adjusatbale

Parts List

QTY  PART-REFS           VALUE
---  ---------           -----
1    R1                  220R

2    C1,C3               100nF
1    C2                  100uF
1    C4                  10uF

Integrated Circuits
1    U1                  78L05

1    RV1                 5k
